4000m3 River Desilting Sand Dredging Boat / Dredging Machinery Hydraulic Controlled

Name: 4000m3 River Desilting Sand Dredging Boat Dredging Machinery Hydraulic Controlled
Brand: JIN MENG
Price: 300000 USD

China 4000m3 River Desilting Sand Dredging Boat / Dredging Machinery Hydraulic Controlled wholesale

Brand Name : JIN MENG

Model Number : JMD550

Certification : ISO9001

Place of Origin : China

MOQ : 1

Price : $300000-$800000

Payment Terms : T/T

Supply Ability : 10sets/year

Delivery Time : 30days

Packaging Details : Bulk

Name : River desilting China cutter suction dredge

Type : Hydraulic cutter suction dredger

Steel Plate Type : Marine Steel

Max. Dredging Depth : 15m

Fuel Consumption : 120-220L/H

Total Capacity : 120m3-8000m3

Side Plate Thickness : 10mm

Generator Set Voltage : 30kw

Auxiliary Engine Power : 298kw

Hydraulic Brand : Rexroth Parker

Contact Now

4000m³ River Desilting Sand Dredging Boat / Dredging Machinery

Product Specifications

Name	River desilting China cutter suction dredge
Type	Hydraulic cutter suction dredger
Steel Plate Type	Marine Steel
Max. Dredging Depth	15m
Fuel Consumption	120-220L/H
Total Capacity	120m³-8000m³
Side Plate Thickness	10mm
Generator Set Voltage	30kw
Auxiliary Engine Power	298kw
Hydraulic Brand	Rexroth Parker

Product Overview

The 4000m³ River Desilting Cutter Suction Dredge is a high-capacity dredging solution manufactured by Weifang Jin Meng Dredger Co., Ltd., a specialized dredging equipment manufacturer since 2000. Our dredgers offer competitive pricing and serve markets across Africa, the Middle East, Southeast Asia, South America, and the United States.

Product Description

Our river desilting cutter suction dredge is available in self-propelled or non-self-propelled configurations with a portable design. The hull features a dismantle and box-like structure, allowing for easy assembly at worksites and transportation by road, railway, or container. The power system can be customized with electric or diesel engine options.

Key equipment includes:

Traversing device
Cutter ladder lifting device
Spuds and deck crane

The dredging process involves the cutter head cutting underwater sand and mud into slurry, which is then pumped through pipelines to the designated discharge location.

Technical Specifications

JMD550 River Desilting Cutter Suction Dredge
Dredging Pump	Dia. Discharge pipe: 550mm Head: 65m Max. Working capacity: 900m³/h Discharge distance: 3000m Dredging depth: 14m
Diesel Engine	1306KW Cummins
Hydraulic Auxiliary engine	336KW Cummins
Emergency Generator	20KW WEICHAI
Total power	1662KW
Oil Consumption	250L/H
Hull Dimension	LOAWD: 42m×7.5m×2.0m
Hydraulic system	VICKERS America (Joint-venture)
Operating system	SIEMENS PLC (Imported from Germany)
Cutter Head	Crown-like Φ1800mm Power: 200KW

Features and Applications

This hydraulic-controlled, assembling dredger is ideal for:

River channel dredging
Canal maintenance
Water storage dredging

The main body consists of three pontoons for easy assembly, with a dismountable operator cabin that allows for bridge clearance. The dredger can be transported long distances by truck or train when disassembled.

Overseas Service

We provide comprehensive installation and training support:

On-site engineering support for installation and operation training
10-15 day installation and testing period
Performance testing in appropriate water conditions
System debugging and operational verification

Factory and Workshop

4000m3 River Desilting Sand Dredging Boat / Dredging Machinery Hydraulic Controlled

Working Site

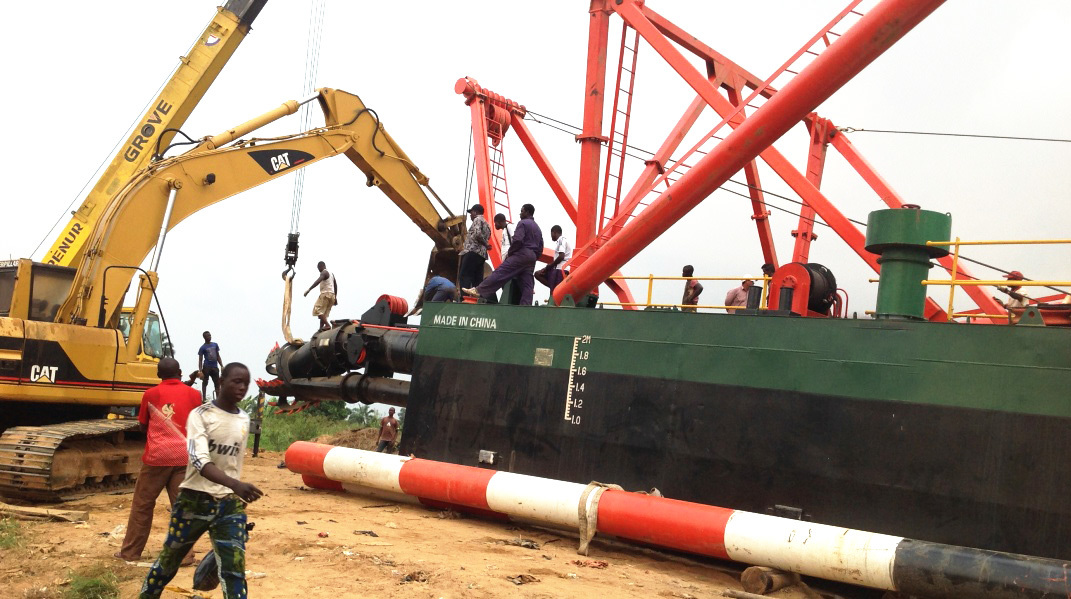

After Sales Installation
