100kW Cutter Power Dredger Equipped with Rexroth Vickers Parker Hydraulic System
Product Specifications
| Attribute | Value |
| Type | Hydraulic Cutter Suction Dredger |
| Fuel Consumption | 34L-500L |
| Power Type | Diesel |
| Engine Brand | Cummins /Weichai |
| Customized Service | Provided |
| Cutter Power | 100kW |
| Dredging Depth | Up To 12m |
| Cyclone Type | Cast Iron Cyclone |
Product Description
The Cutter Suction Dredger is a powerful hydraulic dredging machine designed for various applications. Powered by a reliable diesel engine, this dredger features a high-performance 100kW cutter power system for efficient cutting and dredging operations.
The hydraulic system incorporates premium components from Rexroth, Vickers, and Parker, ensuring precise control and enhanced productivity. The dredger is available in self-propelled or non-self-propelled configurations with a modular hull design for easy transportation and assembly.
Key Features
- Operation System: SIEMENS System
- Engine Brand: Cummins /Weichai
- Fuel Consumption: 34L-500L
- Type: Hydraulic Cutter Suction Dredger
- Power Type: Diesel
- Modular design for easy transportation
- Advanced hydraulic control system
Technical Parameters
| Parameter | Value |
| Model | JMD450 Cutter Suction Dredger |
| Dredging Pump Discharge Pipe | 450mm |
| Head | 55m |
| Max. Working Capacity | 400m³/h |
| Discharge Distance | 1500m |
| Dredging Depth | 12m |
| Diesel Engine | 746KW Cummins |
| Emergency Generator | 16KW Weichai |
| Total Power | 762KW |
| Oil Consumption | 115L/H |
| Hull Dimensions (LOA×W×D) | 37m × 6.9m × 1.8m |
Applications
The JMD450 Cutter Suction Dredger is ideal for various dredging operations including:
- River and channel dredging
- Sand and silt removal
- Land reclamation projects
- Port and harbor maintenance
- Coastal protection initiatives
- Environmental dredging
Suitable for working in sea, port, lake, and river environments with various soil conditions including hard soil, sand, sludge, clay, and mud.
Customization Options
Brand: Jin Meng
Model: JMD450
Origin: China
Certification: ISO
Minimum Order: 1 Set
Price Range: $300,000-$500,000
Delivery Time: 30 days
Annual Capacity: 20 sets/year
Overseas Services
We provide comprehensive technical support including:
- On-site installation guidance by qualified engineers
- Operator training programs
- Maintenance and troubleshooting support
- Performance testing and system debugging
- Periodic product updates and upgrades

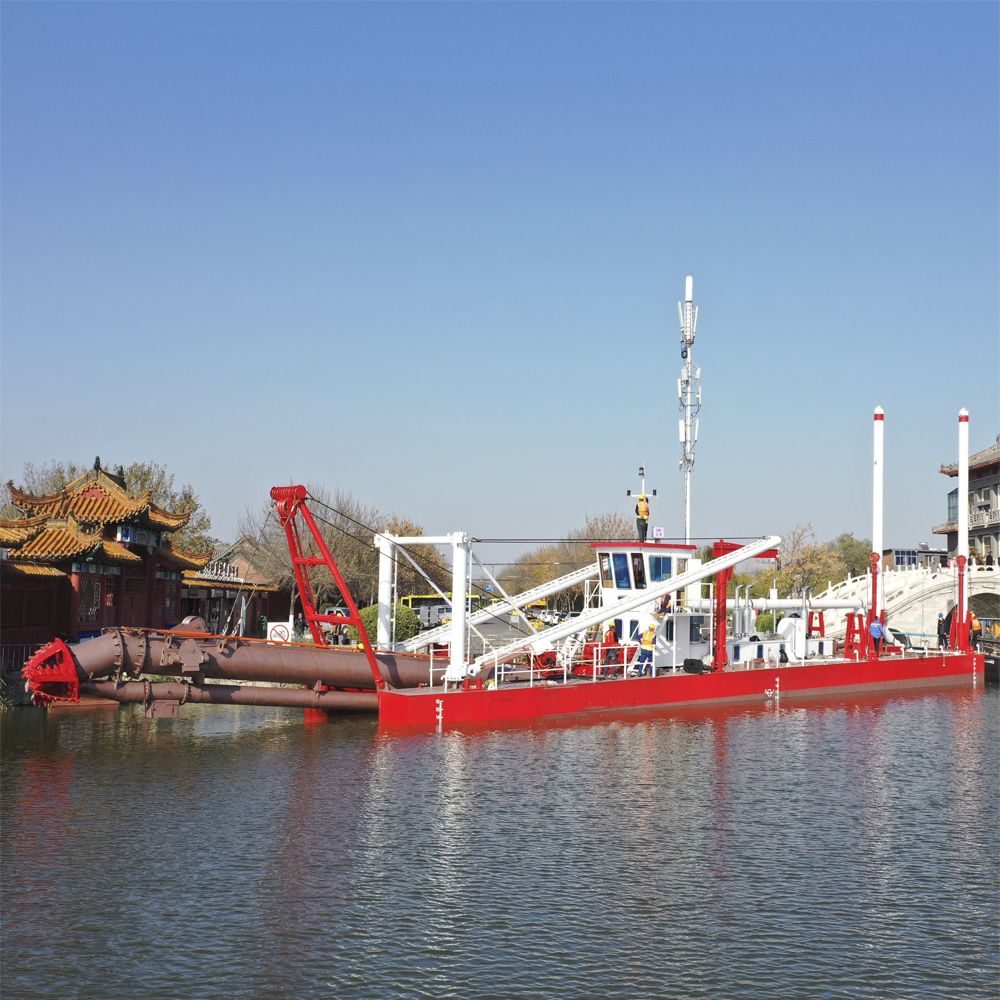

Product Gallery
