Versatile River Dredging Equipment With Bulk Shipment And Diesel Engine Power
Product Specifications
| Attribute | Value |
| Shipment | Bulk |
| Cutter Head Diameter | 1.8 Meters |
| Cutter Head Type | Hydraulic Driven |
| Engine Brand | Cummins/WEICHAI/Mitsubishi |
| Warranty | One Year |
| Shipping Terms | FOB, CFR, CIF |
| Main Engine Power | Cummins 522kw |
| Color | Customized |
River Dredging Equipment Description
Our River Dredging Equipment is a top-tier solution for efficiently clearing waterways and enhancing navigation. This cutter suction dredging equipment delivers powerful and precise dredging capabilities, making it essential for projects of all scales.
The equipment is available in self-propelled or non-self-propelled configurations with a portable cutter suction dredger design. The hull features a dismantle and box-like structure, allowing easy assembly at worksites and transportation by road, railway, or container. The power system can be configured as electric or diesel engine driven to meet customer requirements.
Key Features
- Product Name: River Dredging Equipment
- Cutter Power: Up To 200 KW
- Manhole: Standard
- Cutter Head Diameter: 1.8 Meters
- Color: Customized
- Operating System: Remote Control
Technical Parameters
| JMD550 River Dredging Equipment |
| Dredging Pump | Dia. Discharge pipe: 550mm |
| Head | 65m |
| Max. Working capacity | 900m3/h |
| Discharge distance | 3000m |
| Dredging depth | 14m |
| Diesel Engine | 1306KW | Cummins |
| Hydraulic Auxiliary engine | 336KW | Cummins |
| Emergency Generator | 20KW | WEICHAI |
| Total power | 1662KW |
| Oil Consumption | 250L/H |
| Hull Dimension | LOA*W*D: 42m×7.5m×2.0m |
Applications
The JMD550 cutter suction dredging equipment is ideal for:
- Clearing river channels and deepening waterways
- Maintaining ports and harbors
- Sand dredging in rivers, salty water, or peaceful seas
- Desilting and reclamation projects
Customization Options
Anchor booms installation
Spud carriage installation
5 anchors equipped for better balance
Hydraulic driving for spud flat down
Extra dredging pump for increased depth (20-30m)
Booster station for extended discharge distance
Overseas Services
- Detailed user manuals and documentation
- On-site training for operators
- Remote troubleshooting assistance
- Regular maintenance and service plans
Packing and Shipping
The River Dredging Equipment is carefully packaged to ensure safe delivery. Each component is securely wrapped and cushioned to prevent damage during shipping.
Orders are typically shipped within 2 business days with both standard and expedited options available. Tracking information is provided upon shipment.
Product Gallery
JMD550 River Dredging Equipment for Port Desilting in Nigeria

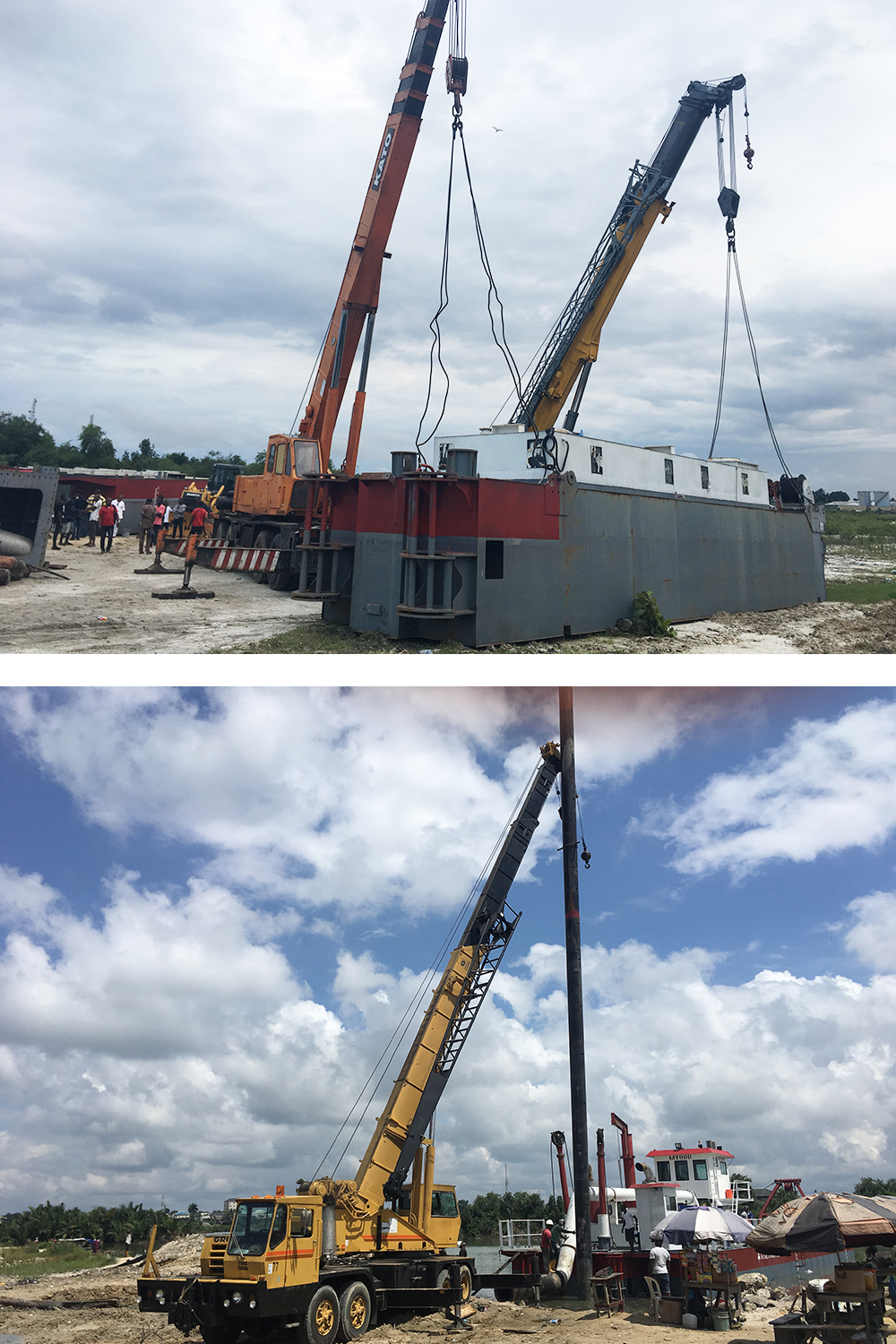

Installation and Training in Working Site

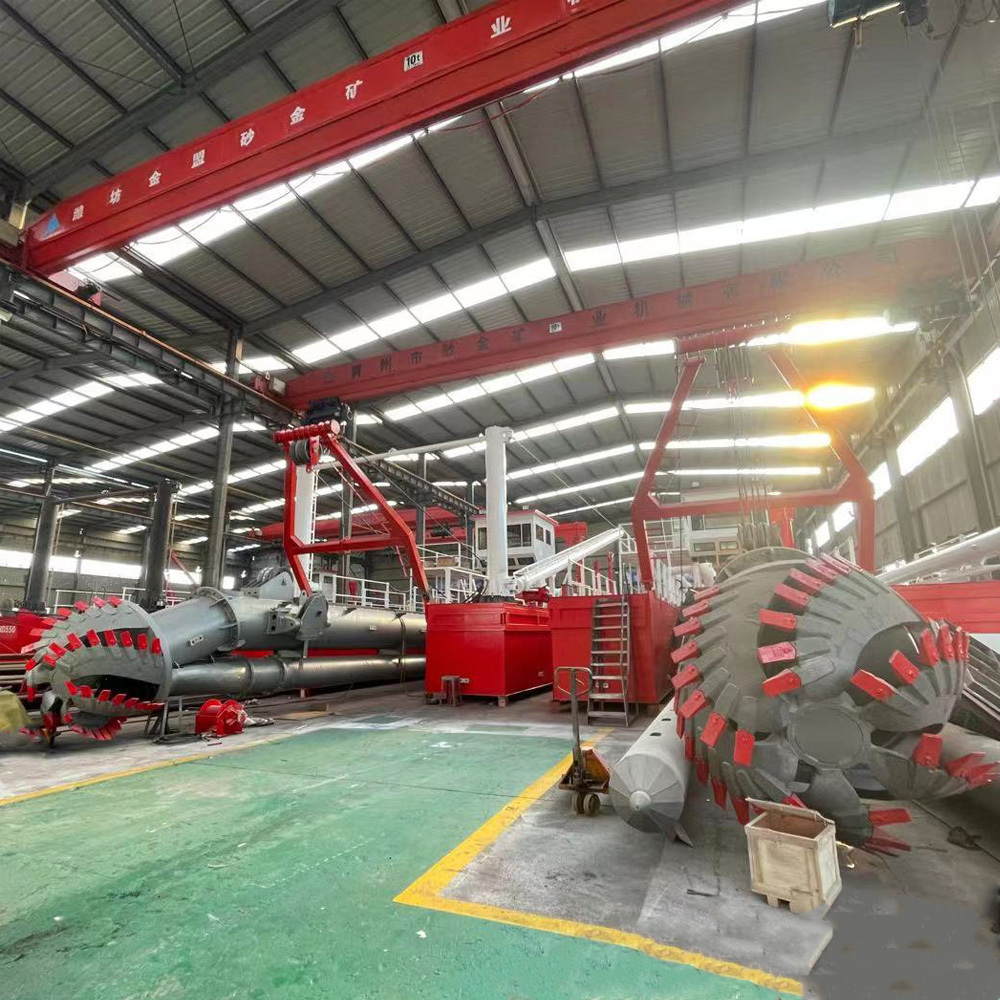

Newly Made JMD550 River Dredging Equipment in Stock
