Depth 25m Sea Sand Suction Dredging Equipment Driven By Diesel Engine

Name: Depth 25m Sea Sand Suction Dredging Equipment Driven By Diesel Engine
Brand: JIN MENG
Price: 800000 USD

China Depth 25m Sea Sand Suction Dredging Equipment Driven By Diesel Engine wholesale

Brand Name : JIN MENG

Model Number : JMD550D

Certification : ISO9001

Place of Origin : China

MOQ : 1set

Price : $800000-$1300000

Payment Terms : T/T

Supply Ability : 10sets/year

Delivery Time : 120days

Packaging Details : Bulk

Name : JMD550D Sea Sand Suction Dredging Equipment

Type : Cutter suction dredger

Power Source : Diesel Engine

Pump Head : 70m

Cutter Power : Up to 200kW

Equipment Weight : 300tons

Toatl Length : 16m-50m

Cooling Way : Water Cooling

Maximum Dredging Depth : 25m

Application : Sea sand dredging

Contact Now

JMD550D Sea Sand Suction Dredging Equipment

Product Specifications

Type	Cutter suction dredger
Power Source	Diesel Engine
Pump Head	70m
Cutter Power	Up to 200kW
Equipment Weight	300 tons
Total Length	16m-50m
Cooling System	Water Cooling
Maximum Dredging Depth	25m
Primary Application	Sea sand dredging

Product Overview

The JMD550D Sea Sand Suction Dredging Equipment is a high-performance cutter suction dredger designed for efficient operation in coastal and inland water environments. Manufactured by Weifang Jin Meng Dredger Co., Ltd., this equipment excels in dredging various soil types including fine sand, clay, silt, and coarse sand.

Key Features

Modular Design: Composed of five pontoons (one main + four side) with full steel welding for easy assembly/disassembly
Powerful Cummins Engine: 1306KW diesel engine with low oil consumption (360L/H) and easy maintenance
Advanced Hydraulic System: Features components from Vickers, SAI Technology, and Rexroth
High-Capacity Pump: 550mm discharge pipe with 80m head and 1050m³/h working capacity
Durable Cutter Head: Φ1800mm crown-like design with 5 blades and 8 teeth per blade (high chromium material)
Smart Control: SIEMENS PLC operating system imported from Germany

Technical Specifications

Component	Specification
Dredging Pump	550mm discharge pipe, 80m head, 1050m³/h capacity
Discharge Distance	3500m
Power System	Total 2418KW (Cummins engines: 1306KW main + 336KW hydraulic + 746KW generator)
Hull Dimensions	56m × 8.5m × 2.5m (L×W×D)
Winch System	200KN ladder winch, 120KN swing winch
Bearings & Seals	NSK anti-friction bearings, packing seal for easy maintenance

Design & Construction

Our sea sand dredging equipment is engineered by senior specialists with decades of shipbuilding and dredging experience. The detachable structure allows for convenient transportation by sea, rail, or road, while the high-wear resistant materials ensure extended service life in demanding marine environments.

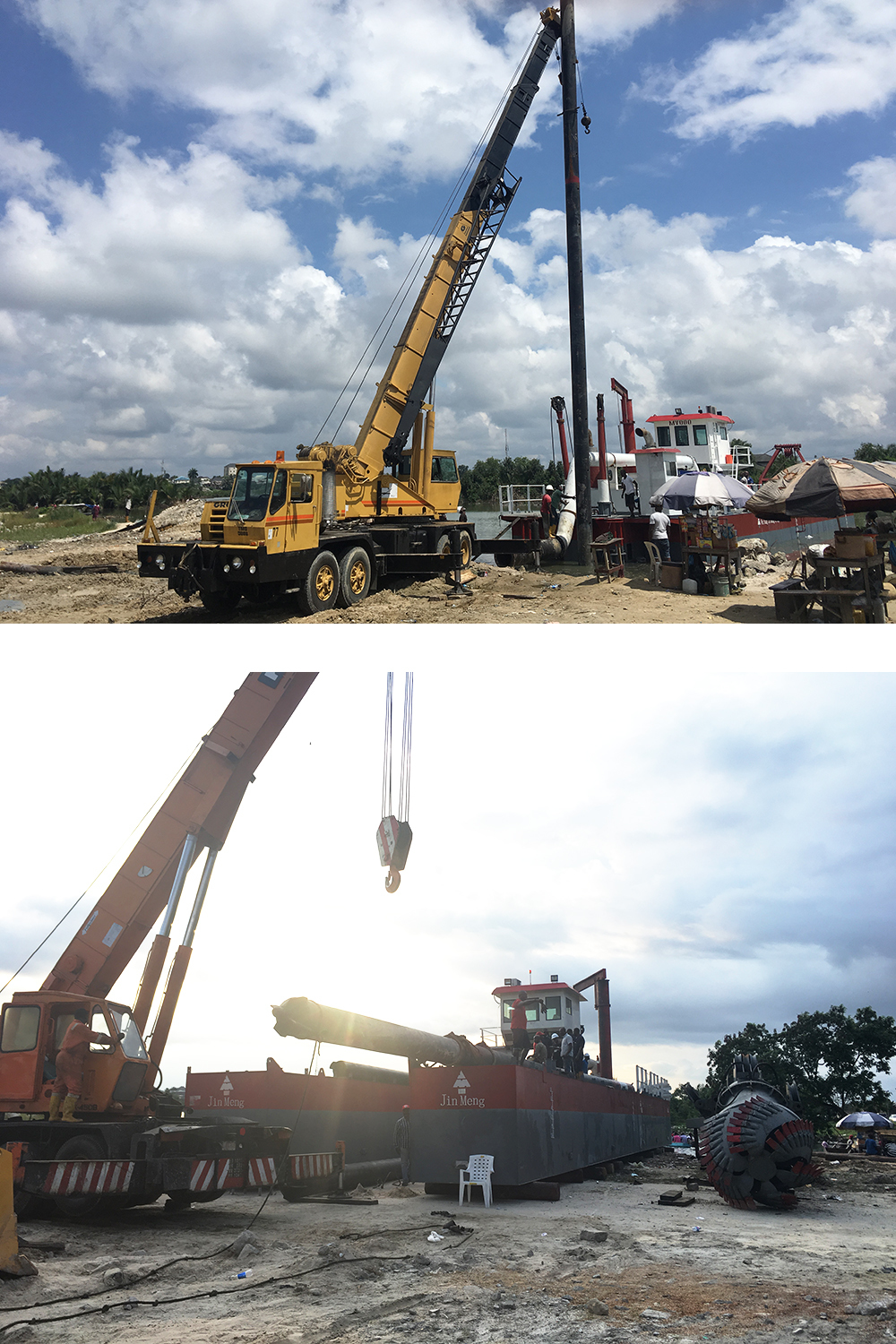

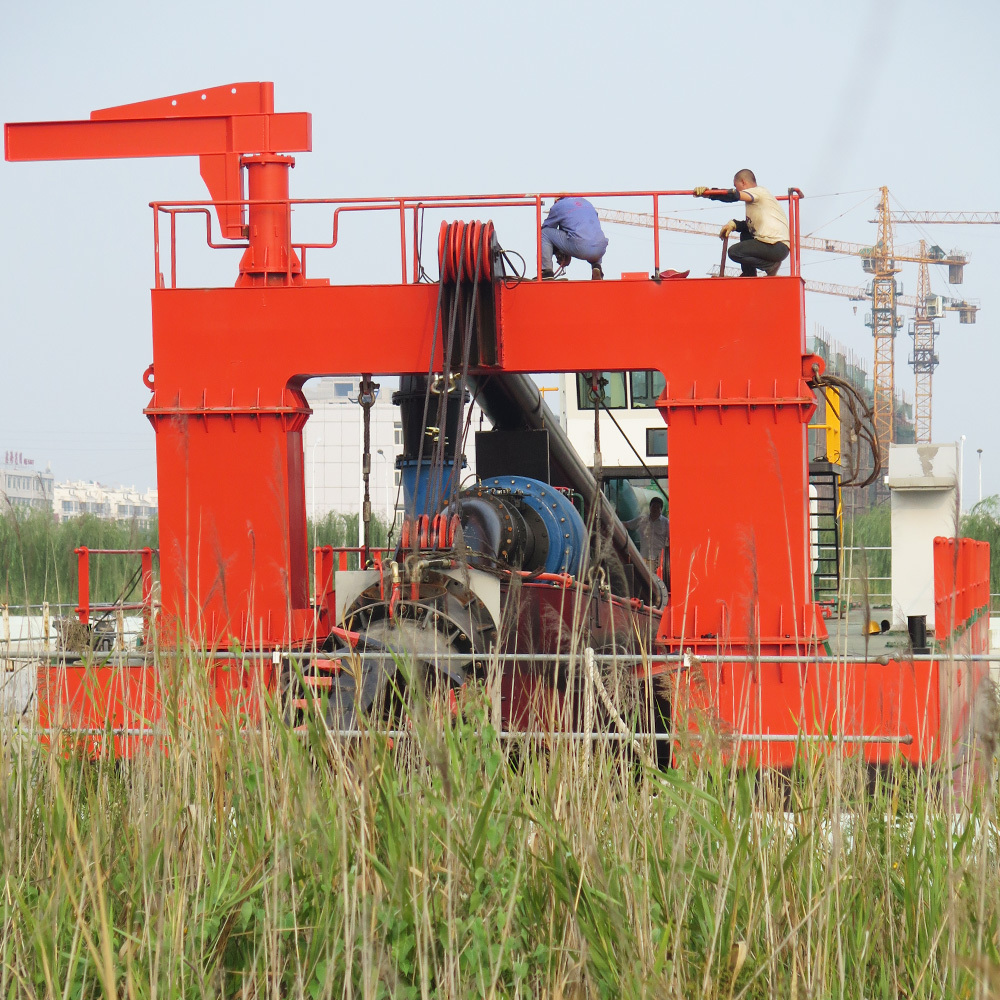

Product Gallery

Depth 25m Sea Sand Suction Dredging Equipment Driven By Diesel Engine

Contact Our Dredging Experts

For detailed specifications, pricing, or custom configuration options, please contact our sales team.
