6000m3 Diesel Engine Power Sand Suction Dredger Ship With Cutter Head

Name: 6000m3 Diesel Engine Power Sand Suction Dredger Ship With Cutter Head
Brand: JIN MENG
Price: 800000 USD

China 6000m3 Diesel Engine Power Sand Suction Dredger Ship With Cutter Head wholesale

Brand Name : JIN MENG

Model Number : JMD650

Certification : ISO9001

Place of Origin : China

MOQ : 1set

Price : $800000-$1400000

Payment Terms : ,T/T

Supply Ability : 10sets/year

Delivery Time : 120days

Packaging Details : Bulk

Name : Diesel Engine Power Sand Suction Dredger Ship

Type : Sand cutter suction dredger

Sand Pump : 530WN

Side Plate Thickness : 6-25mm

Spud Length : Up to 20m

Draft : 1.2m

Sand Pump Brand : Shijiazhuang Industrial Factory

Warranty : 1 year

Cutter Head Diameter : Up to 2.0 meters

Fuel Consumption : Depends on dredging depth and pump capacity

Contact Now

6000m³ Diesel Engine Power Sand Suction Dredger Ship With Cutter Head

Product Specifications

Attribute	Value
Name	Diesel Engine Power Sand Suction Dredger Ship
Type	Sand cutter suction dredger
Sand Pump	530WN
Side Plate Thickness	6-25mm
Spud Length	Up to 20m
Draft	1.2m
Sand Pump Brand	Shijiazhuang Industrial Factory
Warranty	1 year
Cutter Head Diameter	Up to 2.0 meters
Fuel Consumption	Depends on dredging depth and pump capacity

Product Overview

The 6000m³ Diesel Engine Power Sand Suction Dredger Ship is manufactured by Weifang Jin Meng Dredger Co., Ltd., a leading Chinese supplier specializing in sand suction dredger ships. Our products are recognized for their strong technical performance, high quality, and excellent after-sales service, with exports to numerous countries worldwide.

Technical Specifications

Component	Specification	Brand/Origin
Dredging Pump	Dia. Discharge pipe: 650mm Head: 65m Max. Working capacity: 1100m³/h Discharge distance: 4000m Dredging depth: 18m	Shijiazhuang
Diesel Engine	1885KW	Mitsubishi
Hydraulic Auxiliary Engine	522KW	Cummins
Emergency Generator	30KW	WEICHAI
Total Power	2437KW
Oil Consumption	365L/H
Hull Dimensions	50m × 8.8m × 2.5m (LOA × W × D)
Cutter Head	Crown-like Φ2200mm Power: 400KW

Key Features

Self-propelled or non self-propelled portable cutter suction dredger
Dismountable box-like structure for easy transportation and assembly
Optional electric system or diesel engine driving system
Equipped with horizontal shifting devices, cutter ladder lifting devices, and spud devices
Capable of dredging, conveying, and discharging mud or sand
Ideal for river dredging, desilting, and reclamation projects
Manufactured according to CCS standards with high-quality materials

Product Gallery

6000m3 Diesel Engine Power Sand Suction Dredger Ship With Cutter Head

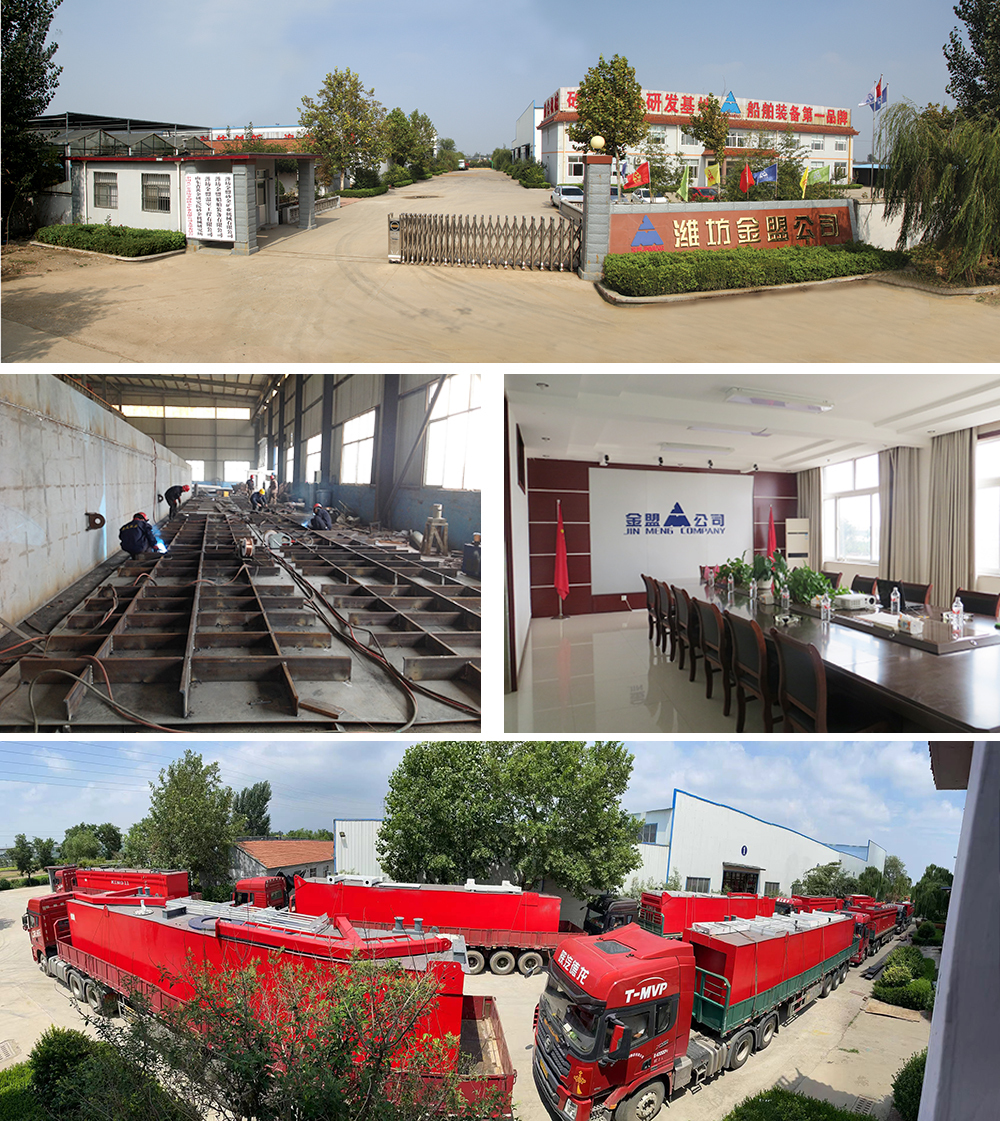

Our manufacturing workshop

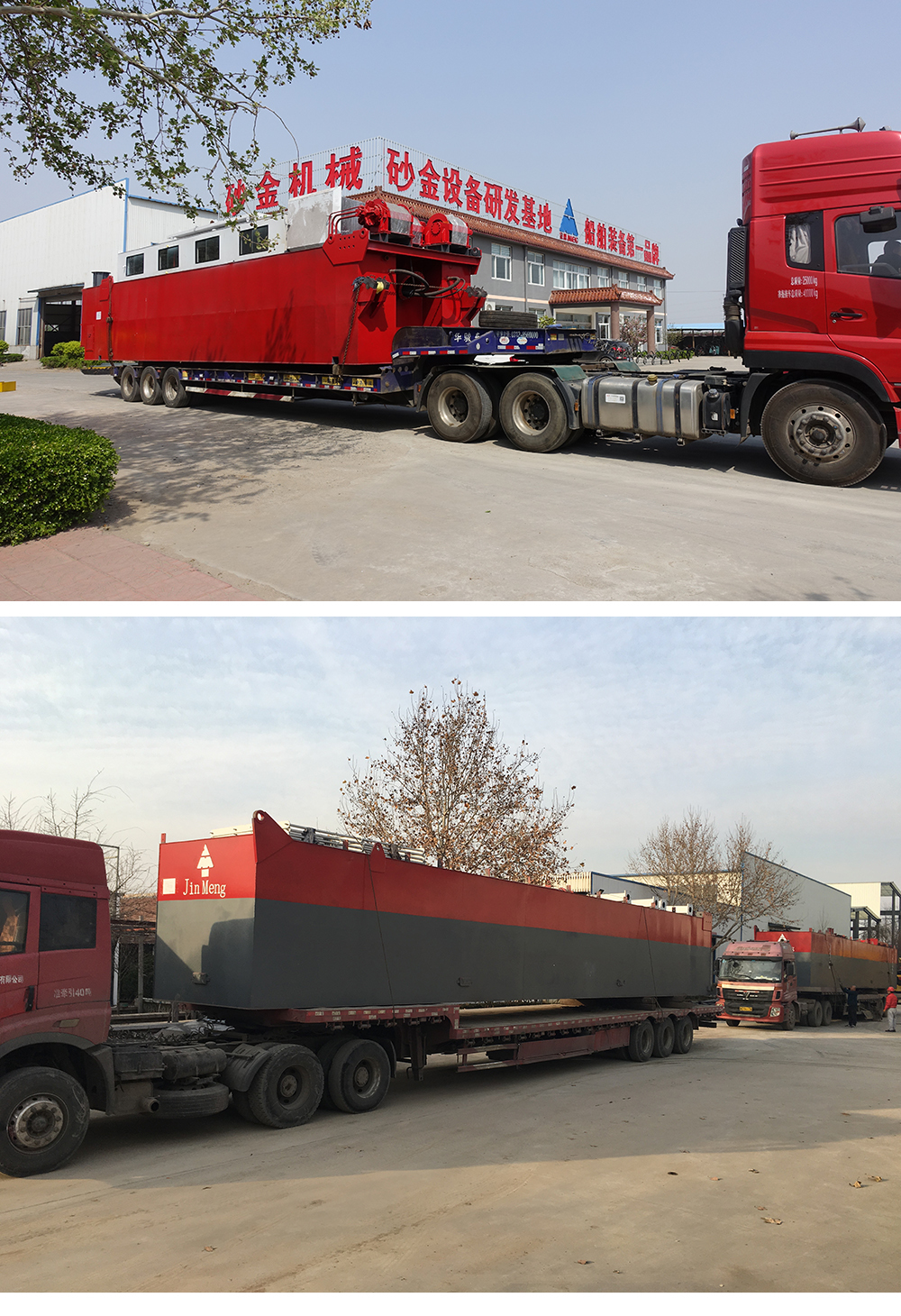

Road transportation of our dredger ships

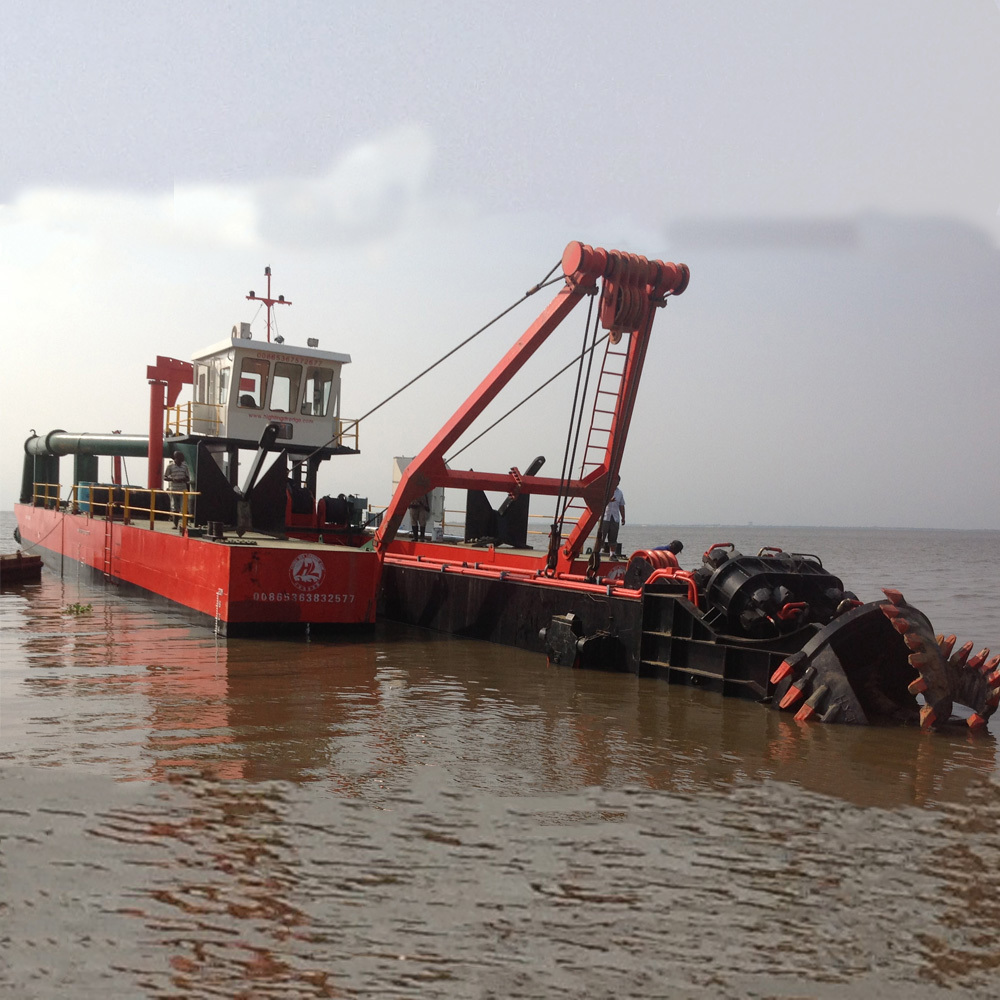

JMD650 dredger ship in operation

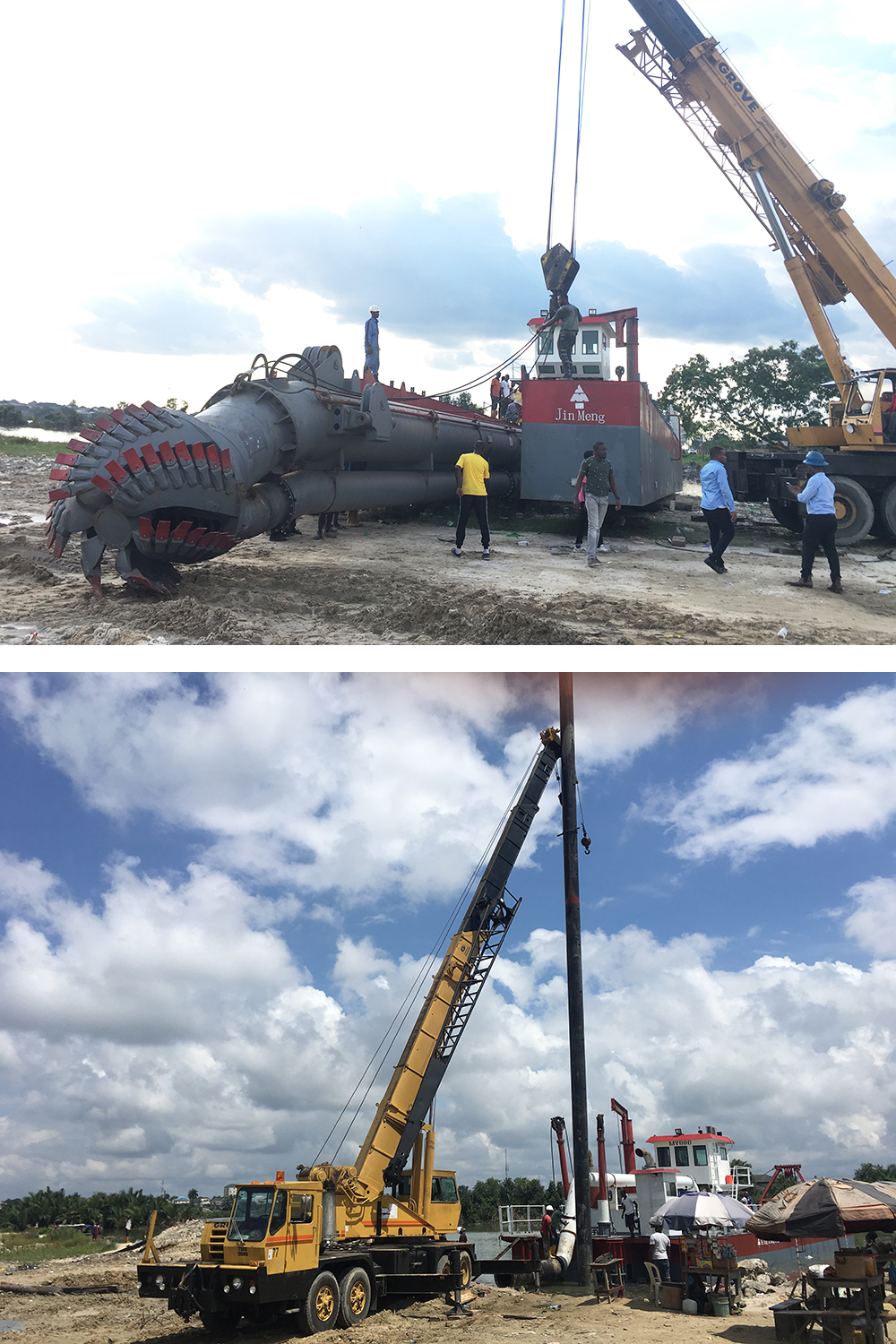

Installation and operator training

Weifang Jin Meng Dredger Co., Ltd. welcomes inquiries and factory visits to learn more about our heavy type diesel engine power sand suction dredger ships.
