Diesel Engine Powered Sand Dredging Equipment For Inland Waterways

Name: Diesel Engine Powered Sand Dredging Equipment For Inland Waterways
Brand: JIN MENG
Price: 800000 USD

China Diesel Engine Powered Sand Dredging Equipment For Inland Waterways wholesale

Brand Name : JIN MENG

Model Number : JMD650

Certification : ISO9001

Place of Origin : China

MOQ : 1set

Price : $800000-$1400000

Payment Terms : ,T/T

Supply Ability : 10sets/year

Delivery Time : 120days

Packaging Details : Bulk

Name : Cutter Head Sand Suction Dredge

Type : Sand cutter suction dredger

Cutter head Diameter : 2.2m

Optional Equipment : Spud Carriage, Anchor Booms, etc.

Cutter head Power : 650kW

Application : Dredging and Excavation

Control System : Hydraulic or Electric

Discharge Pipe Diameter : 650mm

Discharge Distance : Up to 3000 meters

Dredging Depth : Up to 18 meters

Contact Now

650mm Pipe Diameter Diesel Engine Power Sand Dredging Equipment With Cutter Head

Product Specifications

Name	Cutter Head Sand Suction Dredge
Type	Sand cutter suction dredger
Cutter head Diameter	2.2m
Optional Equipment	Spud Carriage, Anchor Booms, etc.
Cutter head Power	650kW
Application	Dredging and Excavation
Control System	Hydraulic or Electric
Discharge Pipe Diameter	650mm
Discharge Distance	Up to 3000 meters
Dredging Depth	Up to 18 meters

Product Overview

The 650mm Pipe Diameter Diesel Engine Power Cutter Head Sand Suction Dredge is designed for efficient dredging operations in various water conditions. Manufactured by Weifang Jin Meng Dredger Co., Ltd., this heavy-duty equipment is suitable for dredging fine sand, clay, silt, and coarse sand in inland waterways and coastal areas.

Technical Specifications

JMD650 Heavy Type Diesel Engine Power Cutter Head Sand Suction Dredge
Dredging Pump	Dia. Discharge pipe: 650mm
Head	65m
Max. Working capacity	1100m³/h
Discharge distance	4000m
Dredging depth	18m
Diesel Engine	1885KW (Mitsubishi)
Hydraulic Auxiliary engine	522KW (Cummins)
Emergency Generator	30KW (WEICHAI)
Total power	2437KW
Oil Consumption	365L/H
Hull Dimension	50m × 8.8m × 2.5m (LOA × W × D)
Hydraulic system	VICKERS America (Joint-venture)
Hydraulic Motor	Italy SAI technology (Joint-venture)
Valves	REXROTH Germany (Joint-venture)
Operating system	SIEMENS PLC (Imported from Germany)
Ladder winch	Tension: 200KN
Swing winch	Tension: 160KN

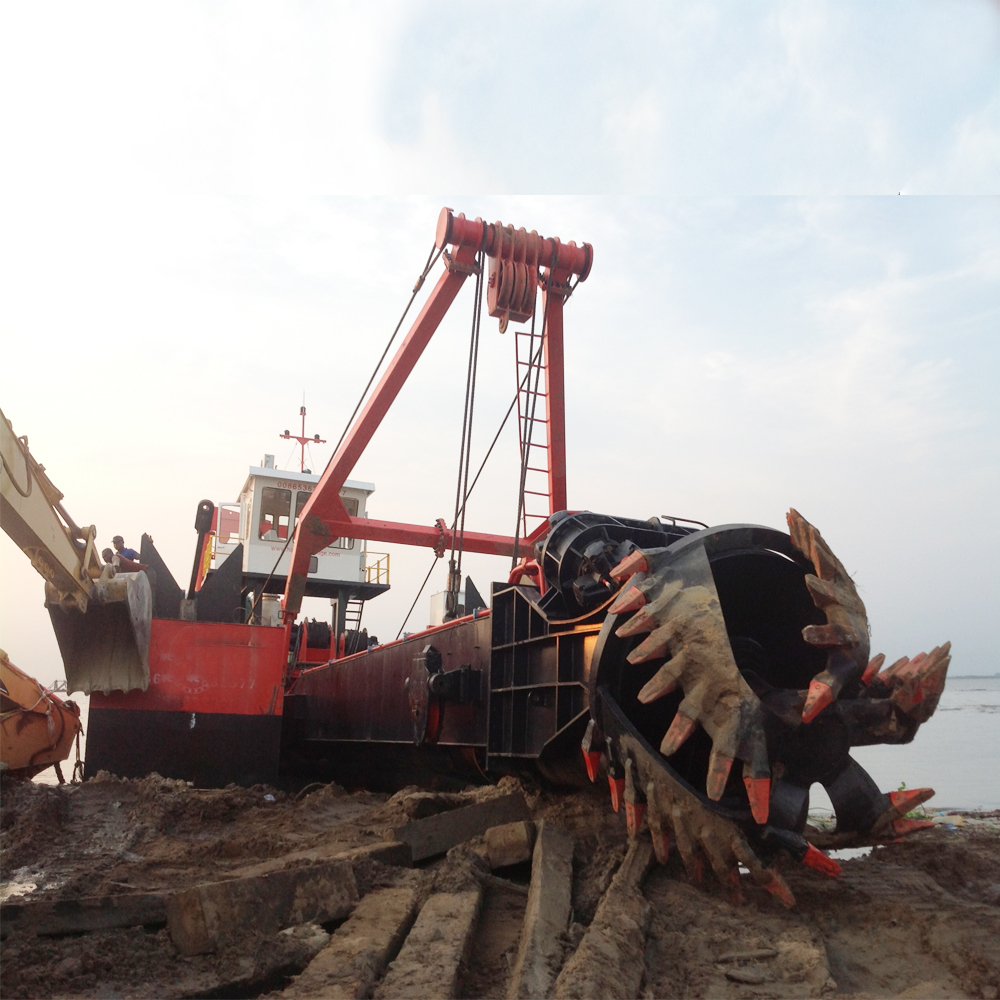

Cutter Head	Crown-like Φ2200mm, Power: 400KW

Key Features

Hydraulic controlled, assembling cutter head design
Suitable for river channel dredging, canal and water storage projects
Modular pontoon design for easy transportation and assembly
Dismountable operator cabin for bridge clearance
Can be transported by trucks or trains for long distances
Equipped with traversing device, cutter ladder lifting device, spuds and deck crane

Operation Process

The cutter head cuts underwater sand into slurry mixture, which is then pumped through pipelines to the discharge location. This equipment is ideal for river dredging, desilting, reclamation projects, and sand dredging in rivers, salty water or calm sea conditions.

Product Gallery

Diesel Engine Powered Sand Dredging Equipment For Inland Waterways

Factory Workshop

Manufacturing Process

Road Transportation

Working Site Operation

Dredging Operation

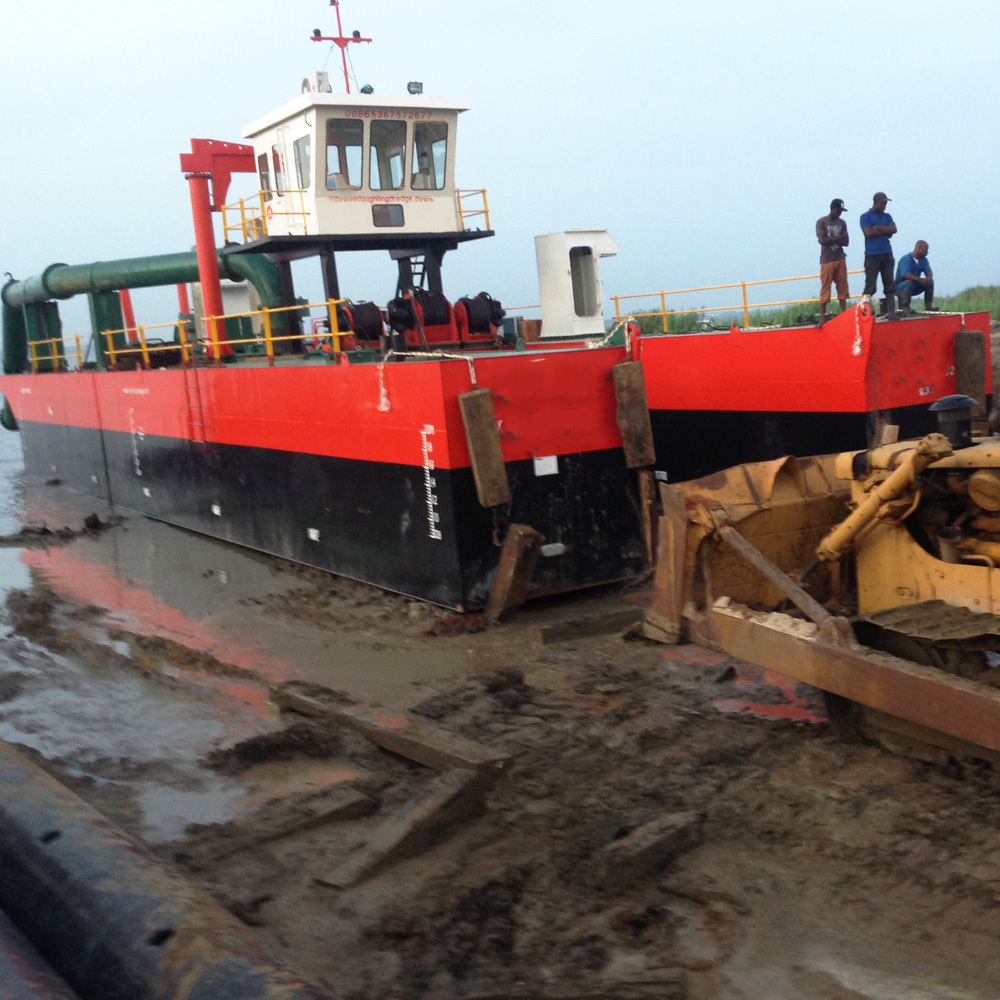

Installation Process

Welcome to visit our factory for more details about our Heavy Type Cutter Head Sand Suction Dredge equipment.

Please feel free to contact us for additional information or customized solutions.
