Reliable Cutter Head Suction Dredge Equipment Easy Transportation And Assembly

Name: Reliable Cutter Head Suction Dredge Equipment Easy Transportation And Assembly
Brand: JIN MENG
Price: 800000 USD

China Reliable Cutter Head Suction Dredge Equipment Easy Transportation And Assembly wholesale

Brand Name : JIN MENG

Model Number : JMD550D

Certification : ISO9001

Place of Origin : China

MOQ : 1set

Price : $800000-$1300000

Payment Terms : T/T

Supply Ability : 10sets/year

Delivery Time : 120days

Packaging Details : Bulk

Name : Cutter head river dredging suction dredge

Type : River cutter suction dredger

Discharge Distance : Up to 2500 meters

Pump Capacity : Up to 4000 cubic meters per hour

Dredging Depth : Up to 25 meters

Function : Suction dredging and cutting through hard materials

Hull Length : Up to 50 meters

Application : River Dredging

Power Output : Varies depending on model

Contact Now

Cutter Head Suction Dredge With Cutter Head Depth To 25m Dredger Equipment

Product Specifications

Name	Cutter head river dredging suction dredge
Type	River cutter suction dredger
Discharge Distance	Up to 2500 meters
Pump Capacity	Up to 4000 cubic meters per hour
Dredging Depth	Up to 25 meters
Function	Suction dredging and cutting through hard materials
Hull Length	Up to 50 meters
Application	River Dredging
Power Output	Varies depending on model

About Weifang Jin Meng Dredger Co., Ltd.

We are a reliable cutter head river dredging suction dredge manufacturer located in Qingzhou, Weifang City, Shandong Province, China. Specializing in cutter head river dredging suction dredge manufacturing since 2000, our products offer competitive pricing and serve markets across Africa, the Middle East, Southeast Asia, South America, and the United States.

Available Models

JMD350 - 14inch cutter head river dredging suction dredge
JMD450 - 18inch cutter head river dredging suction dredge
JMD500 - 20inch cutter head river dredging suction dredge
JMD550 - 22inch cutter head river dredging suction dredge
JMD650 - 26inch cutter head river dredging suction dredge

Technical Specifications (JMD550 Model)

Dredging Pump	Dia. Discharge pipe: 550mm
Head	80m
Max. Working capacity	800m³/h
Discharge distance	3500m
Dredging depth	25m
Diesel Engine	1306KW (Cummins)
Hydraulic Auxiliary engine	336KW (Cummins)
Submersible pump generator	746KW (Cummins)
Total power	2418KW
Oil Consumption	360L/H
Hull Dimension	56m × 8.5m × 2.5m

Key Features

Self-propelled or non self-propelled options available
Dismantle and box-like structure for easy transportation and assembly
Electric system or diesel engine driving system options
Equipped with traversing device, cutter ladder lifting device, spuds and deck crane
Suitable for dredging fine sand, clay, silt, and coarse sand
Composed of five pontoons (one main and four side) with full steel welding

Quality Assurance

Designed and constructed according to CCS standards
CCSB steel plates meeting CCS requirements
Certified welders under CCS regulations
Marine-grade anti-corrosion paints
High-precision installation (less than 0.05mm concentricity)
Premium components from Cummins, Mitsubishi, Rexroth, Siemens, NSK, and Parker

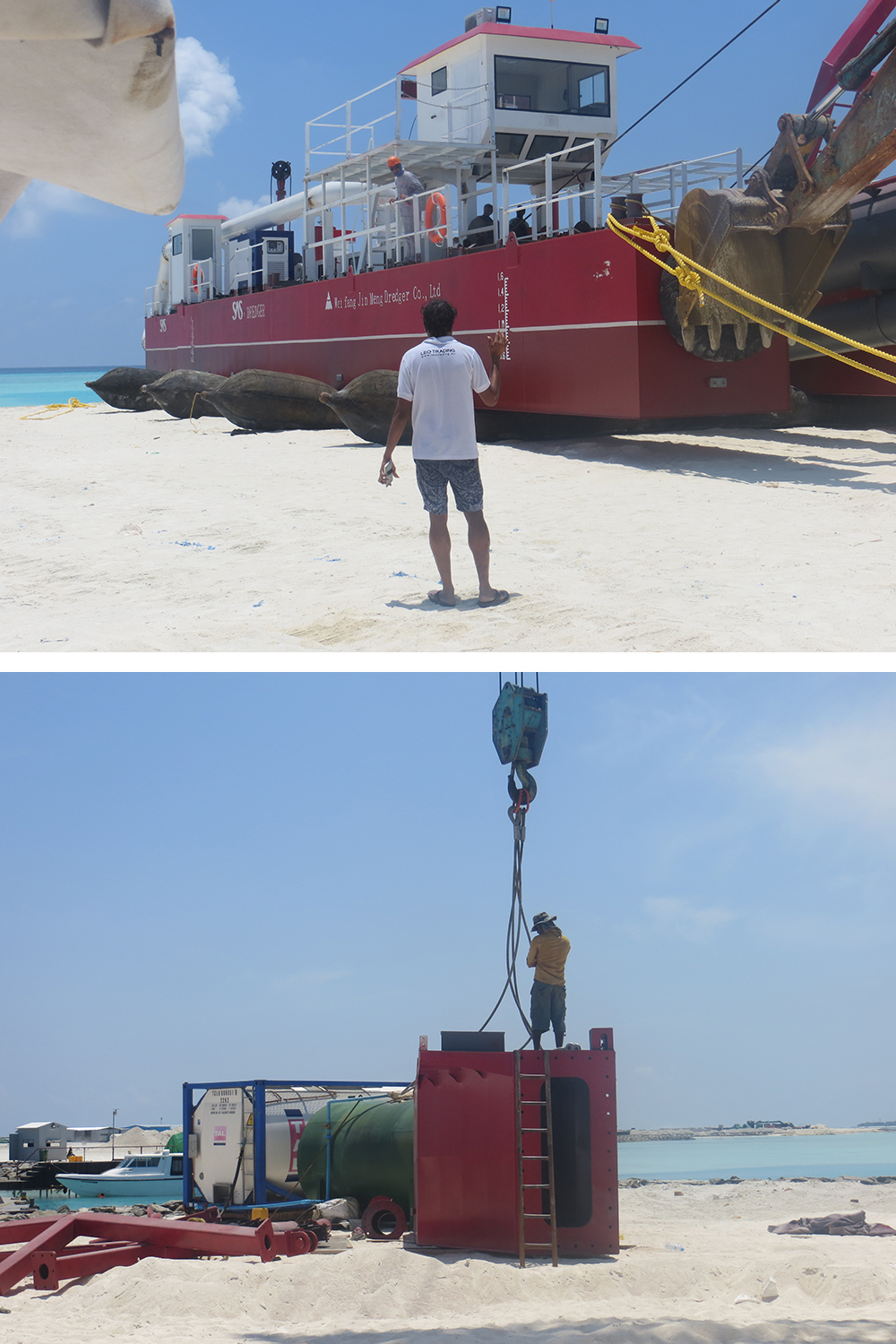

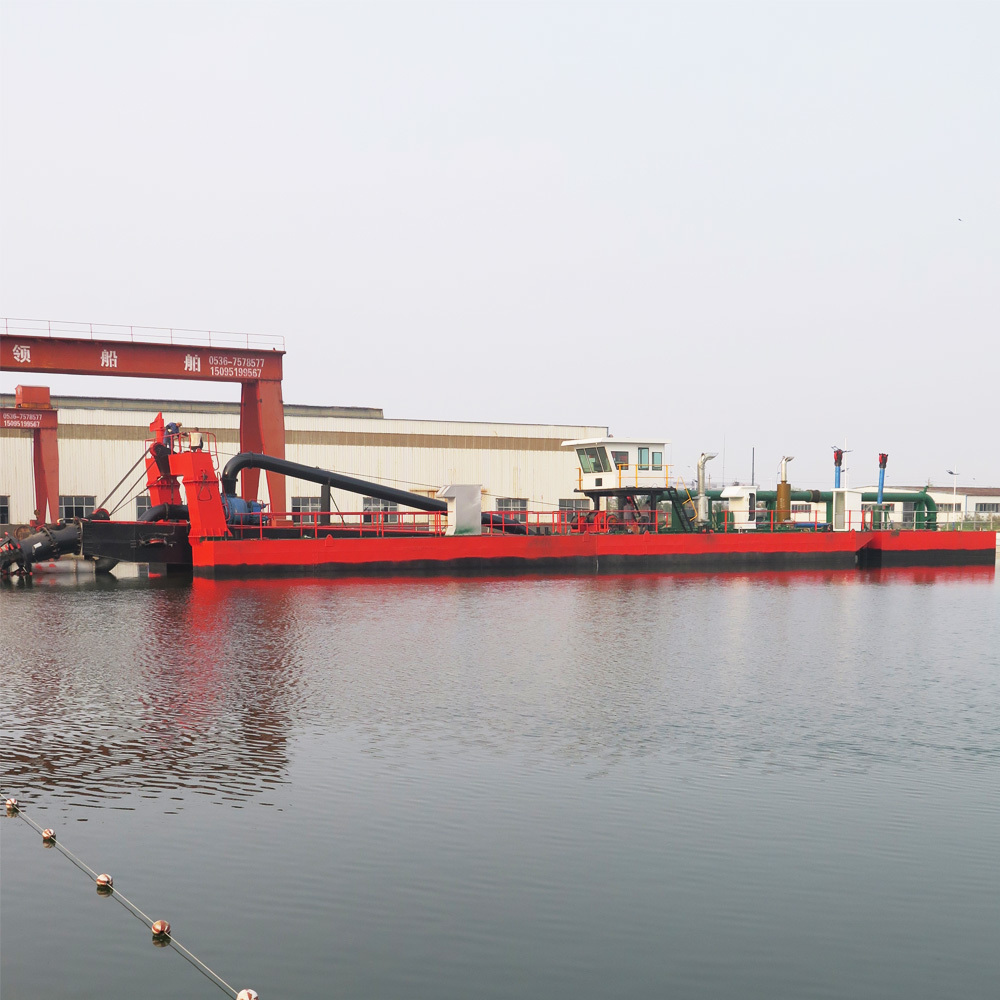

Product Gallery

Reliable Cutter Head Suction Dredge Equipment Easy Transportation And Assembly

For more information about our Cutter Head River Dredging Suction Dredge equipment, please feel free to contact our team.
